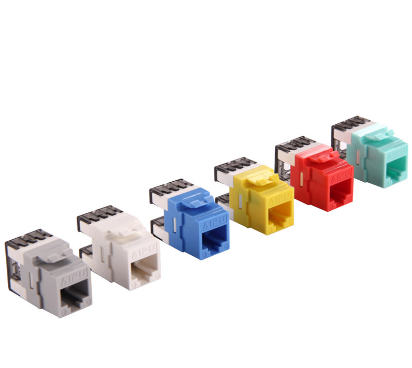

Product Details

High Stability

8-wire contact pins, 50μ" gold plating, overall gold-plated, anti-corrosion design; IDC material: phosphor bronze with nickel plating

Module housing made of imported Polycarbonate (PC) material

Easy Punch-down

Keystone punch-down design, highly versatile module supports side-entry and rear-entry wiring

Generous Headroom

Tested bandwidth up to 100MHz+, practically supports 100Mbps network speed

Widely used in 100BASE-T Fast Ethernet, 100BASE-TX Fast Ethernet, and other high-speed transmission protocols

Physical Specifications

IDC Terminal Wire Range: Solid or stranded bare copper conductor 0.4-0.6mm

RJ45 Interface Type: 8P8C

Wiring Method: 180° punch-down, terminated with 110 tool

Frequency Range: 0-100MHz

RJ45 Mating Cycles: ≥750 / IDC Termination Cycles: ≥250
